-----------Fusion Rainwater Harvesting System 2
---------------3 in 1 Functions Pond Design
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-

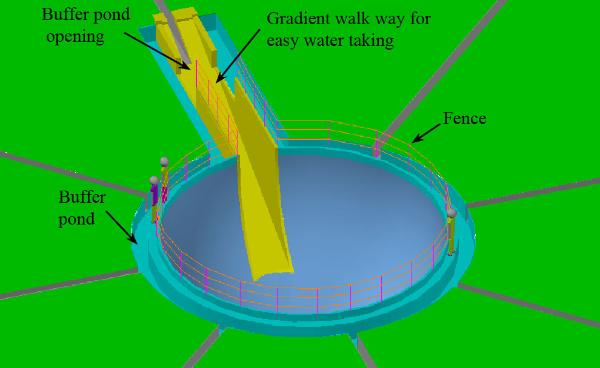

-Fig. 1 - 3 in 1 functions pond design with features of protection,
-------------easy water access and dirt sinking
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-

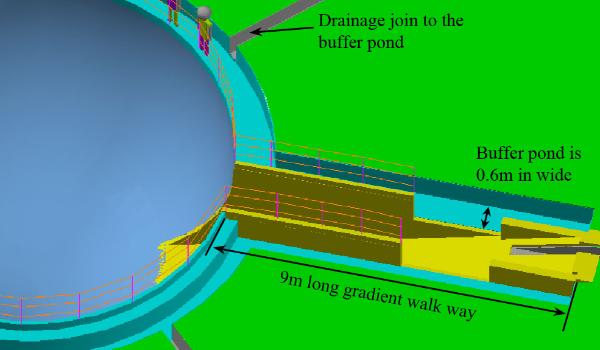

-Fig. 2 - 9m gradient walk way connect the surface and the
-------------bottom of pond together
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-

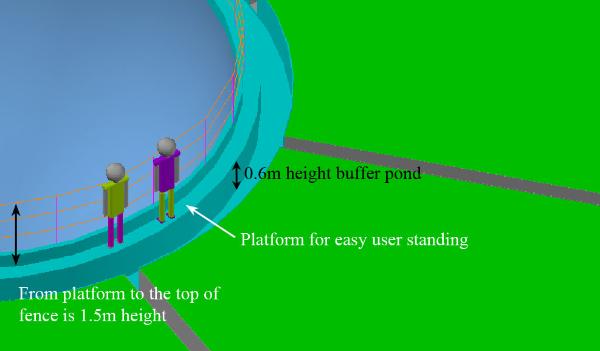

-Fig. 3 - The platform make easy for the user to check the
-------------pond water condition
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-

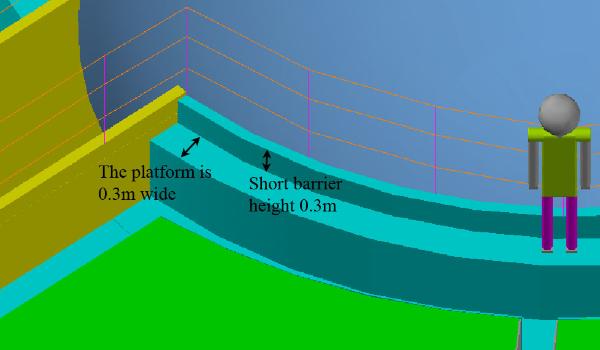

-Fig. 4 - The platform wide 0.3m. The purpose of short barrier
-is to prevent any exceed rainwater in the buffer pond from
-pouring into the center pond making the pond water dirty
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-

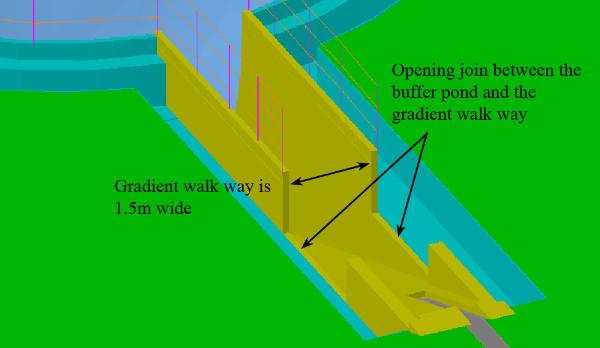

-Fig. 5 - The gradient walk way wide 1.5m for user easy to
-walk into it to access the pond water. The buffer pond opening
-allow the rainwater in buffer pond to flow gradually into the
-gradient walk way. This will reduce the water pouring effect
-causes turbulence in the pond water and make the pond
-water dirty. Without water turbulence, the dirt in the pond
-water will continue to sink making the surface water
-relatively clean
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-

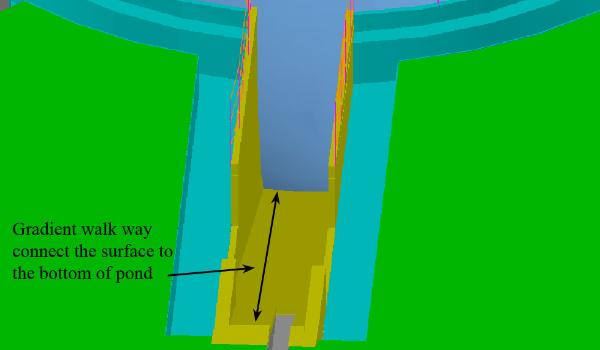

-Fig. 6 - The gradient walk way connect the surface to the
-bottom of pond for user easy access the pond water of
-any level
-
-
-----------Fusion Rainwater Harvesting System 2
---------------3 in 1 Functions Pond Design
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-Fig. 1 - 3 in 1 functions pond design with features of protection,
-------------easy water access and dirt sinking
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-Fig. 2 - 9m gradient walk way connect the surface and the
-------------bottom of pond together
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-Fig. 3 - The platform make easy for the user to check the
-------------pond water condition
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-Fig. 4 - The platform wide 0.3m. The purpose of short barrier
-is to prevent any exceed rainwater in the buffer pond from
-pouring into the center pond making the pond water dirty
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-Fig. 5 - The gradient walk way wide 1.5m for user easy to
-walk into it to access the pond water. The buffer pond opening
-allow the rainwater in buffer pond to flow gradually into the
-gradient walk way. This will reduce the water pouring effect
-causes turbulence in the pond water and make the pond
-water dirty. Without water turbulence, the dirt in the pond
-water will continue to sink making the surface water
-relatively clean
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-Fig. 6 - The gradient walk way connect the surface to the
-bottom of pond for user easy access the pond water of
-any level
-
